LONG FRAME 1/4" MODULAR TWIN ROW JACK PANELS
206
JACK PANELS
PHONE: 773 792-2700
* Please visit the product pages on our website for the most up-to-date product information

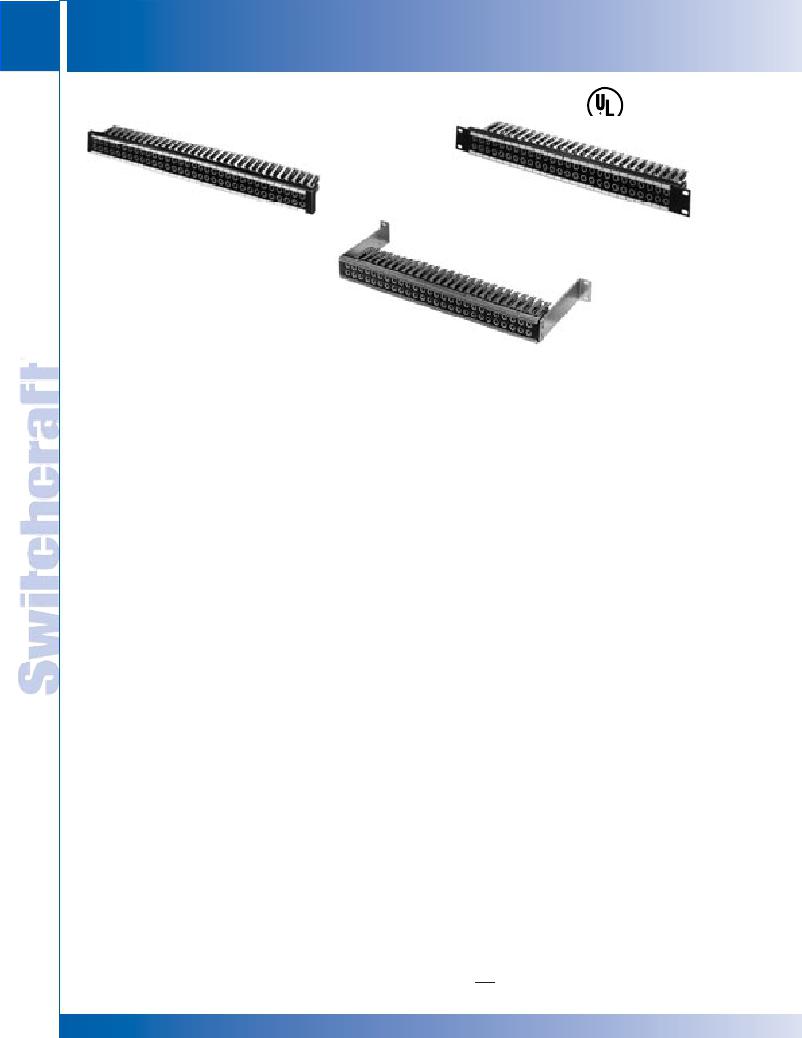

LONG FRAME (1/4") MODULAR TWIN ROW JACK PANELS
SERIES JP072S32A
SERIES JP122S34B
*Shown with optional jacks, See next page
for specific part numbers.
SERIES JP032S32B
*Shown with optional jacks, See next page
for specific part numbers.
SERIES JP012000 THROUGH JP122000
Series JP ? Modular Jack Panels feature a modular packaging
concept. Jacks are mounted on inserts then complete
modular insert assemblies are mounted to the panel from the
rear. Mounting and wiring are quick and easy. Individual jacks
or complete inserts can be removed from the panel with
minimum disturbance to wiring and adjacent jacks. JP panels
offer three mounting styles (standard rack mount, flush
mount, and extension mount), staggered or continuous-center
panel openings, two panel lengths (19" and 23"), WEco
equivalents, Kwik-Change ? designation strips, precision
manufactured modular parts, rugged black anodized
aluminum frames and quick and easy module or jack
removal/installation.
Each module insert has four holes which mount four MT-Jax ?
or two Twin-Jax ? . Each modular jack panel is supplied with
two Kwik-Change ? designation strips. Mounting strips are
integral with panel, and marking strips and clear covers snap
into place quickly and easily.
SERIES JP012000
Standard 1.75" x 19" size for console, rack or control panel
mounting. Mounts 48 MT-Jax ? . Openings are on alternate
.625" and .75" centers in each row. A twin plug fits jacks
horizontally or vertically in the same quad, but cross-connecting
between quads is not possible. Includes 12 black module
inserts, insert mounting screws and two Kwik-Change ?
designation strips.
SERIES JP022000
Same as JP012000, except 23" wide (includes 14 inserts
which accommodate 56 MT-Jax ? ).
SERIES JP032000
Same as JP012000, except with 5.375" extension brackets
which permit access to rear of jacks from front of panel.
Brackets are supplied mounted to panel.
SERIES JP042000
Same as JP032000, except 23" wide (includes 14 inserts
which accommodate 56 MT-Jax ? ).
*Shown with optional jacks, See next
page for specific part numbers.
SERIES JP052000
Same as JP012000, except designed for flush mounting or standoff
mounting. Switchcraft Bracket Kit K107; Contact Switchcraft.
SERIES JP062000
Same as JP052000, except 23" wide (includes 14 inserts
which accommodate 56 MT-Jax ? ).
SERIES JP072000
Same as JP012000, except mounts 52 MT-Jax ? and includes
13 black module inserts. Modular equivalent of WEco #230A.
SERIES JP082000
Same as JP072000, except 23" wide (includes 16 inserts which
accommodate 64 MT-Jax ? ). Modular equivalent to WEco #231A.
SERIES JP092000
Same as JP072000, except with 5.375" extension brackets
which permit access to rear of jacks from front of panel.
Brackets are supplied mounted to panel.
SERIES JP102000
Same as JP092000, except 23" wide (includes 16 inserts
which accommodate 64 MT-Jax ? ).
SERIES JP112000
Same as JP072000, except designed for flush mounting or standoff
mounting. Switchcraft Bracket Kit K107; Contact Switchcraft.
SERIES JP122000
Same as JP112000, except 23" wide (includes 16 inserts
which accommodate 64 MT-Jax ? ).
SPECIFICATIONS
Panel and Integral Designation Mounting Strips:
Aluminum alloy, extruded. Black anodized per MIL-A-8625
Module Insert: Molded plastic, matte finish. Black standard;
white, red, green, blue or yellow available on special order
Marking Strip: White matte finish plastic
Designation Strip Cover: Extruded clear plastic
Screws: #6-32 x 5/15", PHMS, for jack mounting;
#4-40 x 1/2" phillips PHMS, for module insert mounting
Brackets: 5.375", aluminum alloy black anodized finish
(JP032000, JP042000, JP092000, JP102000)
Screws, Mounting Bracket: #6-32, self-tapping supplied.
DIMENSIONS ARE FOR REFERENCE ONLY
www.switchcraft.com
Inch
(mm)
? Registered trademark of Switchcraft, Inc.
Note: Contact your Switchcraft Representative for price and delivery
